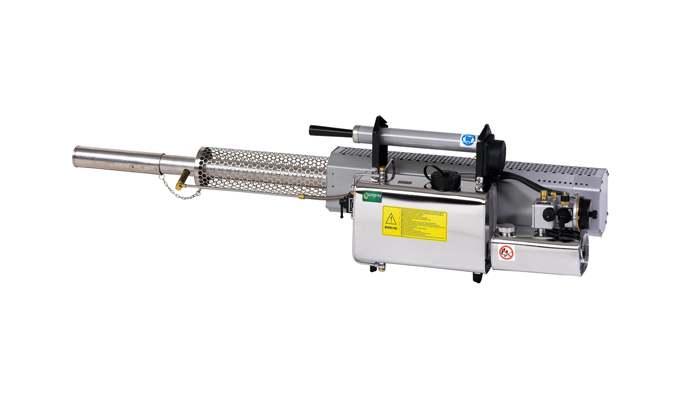

Thermal Fogger TS-36S Model

Technical Specification
Weight, empty : 9.1 kg
Dimensions(L x W x H) : 1375x290x360mm
Weight, empty(shipping data) : 14.1kg
Dimensions (L x W x H ),(shipping data) : 1270x310x370mm
Chemical tank capacity : 5 L
Fuel tank capacity : 1.5 L
Fuel consumption : 1.5 L/h
Performance of combustion chamber : 13.8-18.2 Kw / 18.8-24.8 Hp
Flow rate : 8-42L/h
Battery electricity : 4x 1.5 V
Pressure in chemical tank : 0.25 bar
Pressure in fuel tank : 0.06 bar

Product Positioning

As a high-end fog machine validated globally, it has gained widespread recognition among customers worldwide for its versatile applications, stable performance, and reliable quality.



Core Advantages

1. Effortless Startup: Equipped with an automatic igniter and intelligent ignition system. Simply pump manually to trigger automatic ignition—no need for manual ignition button pressing, ensuring a streamlined and efficient startup process.

2. Safe Cooling System: Three-layer cooling structure paired with dual air inlets enables real-time circulation of cold air. During normal operation, the temperature of the outer protective net is only about 30°C, safe to touch and providing full protection for operators.

3. High Power & Stable Performance: Boasting high-power configuration with consistent and reliable performance. Compatible with both water-based and oil-based chemicals, meeting the needs of diverse operational scenarios.

4. Tender-Specific Optional Configurations: Optional automatic ignition system (3-second one-key startup, no pumping required) and automatic chemical cutoff valve (automatically shuts off chemical supply in emergencies or when chemicals/oil are exhausted to eliminate fire hazards). Exclusively designed for government tender projects; not recommended for daily use by general customers due to higher costs.

5. Durable Construction: Combustion chamber made of top-grade 310S stainless steel. The outer protective net features exceptional strength, maintaining shape even after long-term continuous operation or 3–5 years of use, ensuring outstanding reliability and durability.

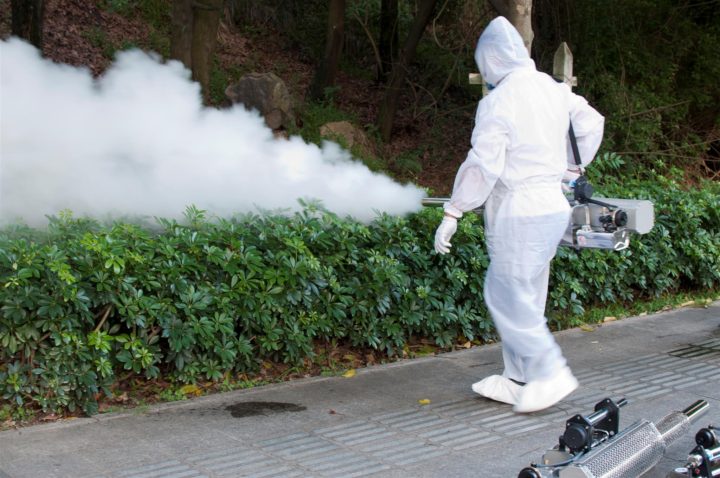

Application Scenarios

Tailored for high-budget customers and government projects, ideal for outdoor anti-corrosion and protection scenarios, including:

• Large-scale emergency prevention of infectious diseases such as dengue fever, Chikungunya fever and malaria control;

• Pest control in grain storage warehouses;

• Disinfection of agricultural greenhouses;

• Disinfection of livestock and poultry farms (e.g., pig, chicken, cattle farms) using water-based or oil-based chemicals.
